Mold features:

  1. Due to the structure of the slider, because it is a rotating two-color, it is necessary to design an oil cylinder to ensure that the slider does not move when the mold is opened and rotated to change the cavity.

  2. There are many ribs in the front mold, so it is necessary to increase the hook of the front mold when         designing the mold to ensure that the product does not stick to the front mold.

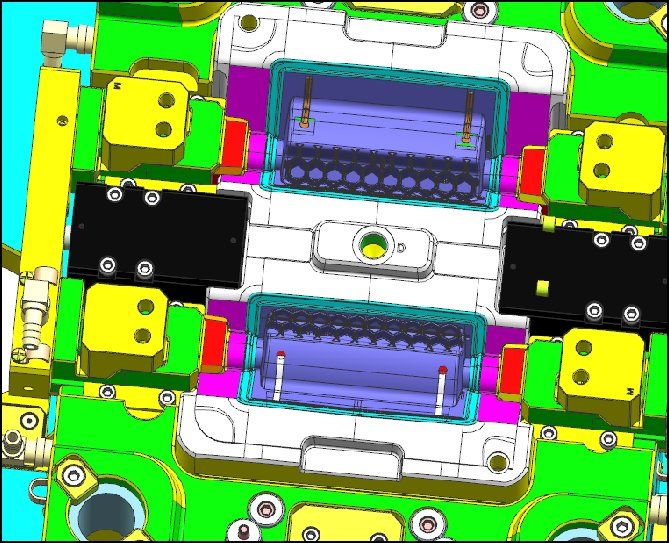

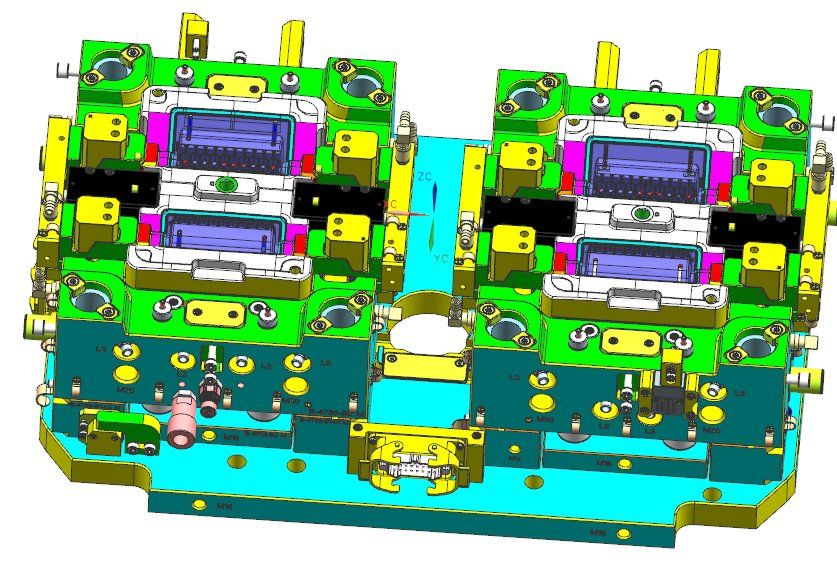

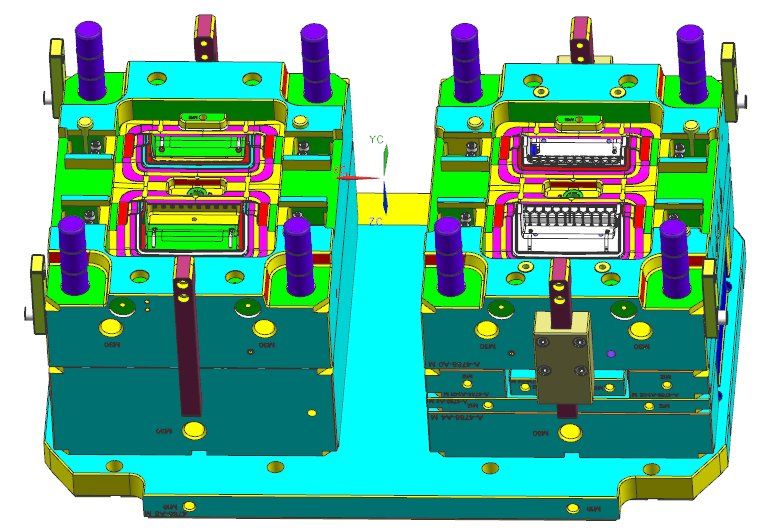

Mold Design:

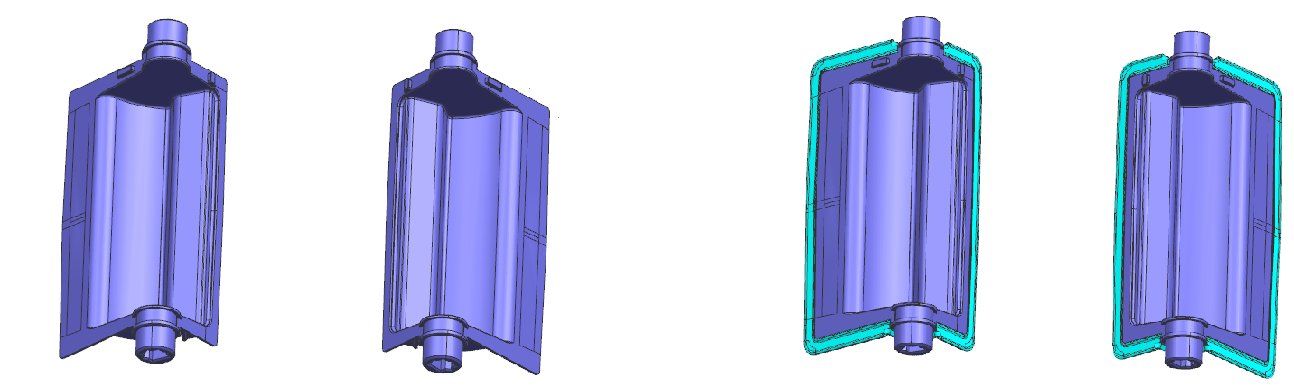

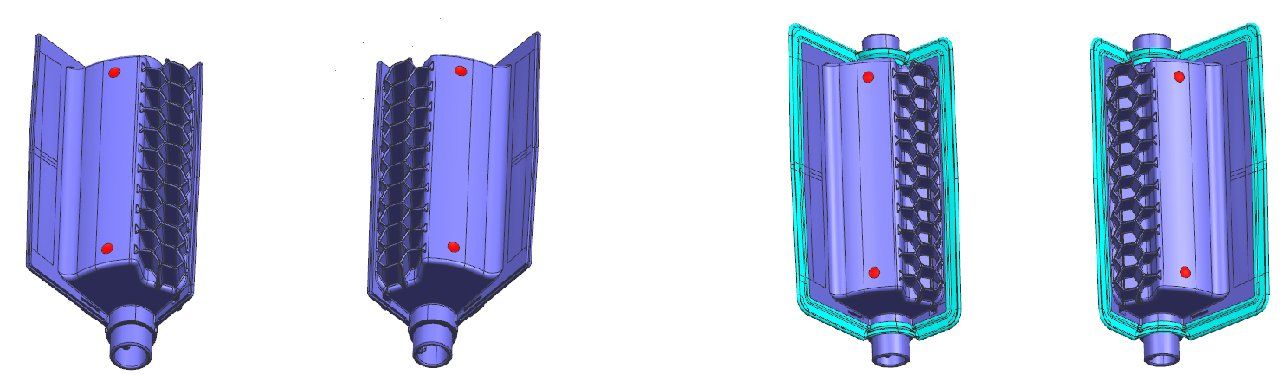

Parts Pictures:
